Dec 27, 2011  Cisco ASA firewall licensing used to be pretty simple, but as features were rolled out as licenses, the scheme became quite complex. The matters are further complicated since different appliances and versions change the rules. This document will help you make sense of ASA licensing. Checking user license limit in Cisco ASA 5505 1 Comment Posted by cjcott01 on February 25, 2014 I work with many Cisco ASAs in the field that have been purchased from ebay then put into production.

Cisco ASA firewall licensing used to be pretty simple, but as features were rolled out as licenses, the scheme became quite complex. The matters are further complicated since different appliances and versions change the rules. This document will help you make sense of ASA licensing, but is not intended to be used as a design guide. Make sure you work with your reseller if you are looking to deploy these features.

Many have connected this belief to racism. Anybody who could not measure up to that standard could not qualify for public office or even popular respect. One who was born 'with a silver spoon in his mouth' might be envied, but he could not aspire to public acclaim; he had to live out his life in the seclusion of his own class.Some political scientists have described the term as a myth invented to assert superiority. For example, said:We have deluded ourselves into believing the myth that capitalism grew and prospered out of the Protestant ethic of hard work and sacrifice. The so-called Protestant Ethic then prevalent held that man was a sturdy and responsible individual, responsible to himself, his society, and his God. Protestant work ethic pdf.

Security Plus

Security Plus licensing exists only on 5505 and 5510. On the 5505 it has the following effects:

• Upgrades the maximum VPN sessions from 10 to 25.
• Upgrades the maximum connections from 10,000 to 25,000.
• Increases the number of VLANs from 3 to 20 and enables trunking.
• Enables optional stateless active/standby failover.

On the 5510 it has slightly different set of features it enables:

Cisco Asa Show License

• Upgrades the maximum connections from 50,000 to 130,000.
• Moves 2 of the 5 FastEthernet ports to 10/100/1000.
• Increases the number of VLANs from 50 to 100.
• Enables security contexts and allows for 2. Up to 5 can be supported on the 5510.
• Enables optional active/active and active/standby failover.
• Enables VPN clustering and load balancing.

The 5520 and up do not have Security Plus licensing. They come with the Base license and need nothing more to get the most performance out of the unit. Update: As Stojan pointed out in the comments, the 5585X series does have Security Plus licenses which enables the 10GB SFP+ slots.

5505 User Licenses

The 5505 is the only ASA which has a restriction on the number of “users” behind a firewall. A user is considered an internal device which communicates with the external VLAN. By default the 5505 ships with a 10 user license but can be upgraded to 50 or unlimited users.

SSL VPN Licenses

SSL VPN debuted on the ASA when it was first released but has evolved more than any other licensed based feature on the ASA.

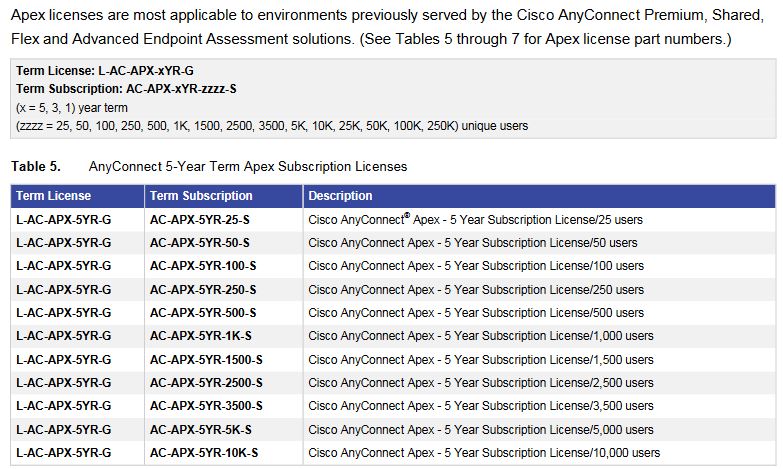

SSL licenses break into two general types: Essentials and Premium.Essentials provides AnyConnect client based connections from personal computers including Windows and Mac systems. Installing an Essentials license allows for up to the maximum number of VPN sessions on the platform to be concurrently used for SSL. For example, a 5510 would immediately allow for up to 250 SSL VPN connections from the AnyConnect client. These licenses are relatively inexpensive, currently priced around a hundred dollars with the price varying per platform. These are platform specific SKUs so make sure the one you’re buying matches the device it is going on. For example, on the 5510 make sure the license is L-ASA-AC-E-5510=. AnyConnect Essentials licenses debuted with ASA release v8.2.

Premium licenses are more complicated than Essentials. Premium licenses allow for both AnyConnect client based and clientless SSL VPN. Clientless VPN is established through a web browser. While it is typically less functional than AnyConnect client based VPN, it is adequate access for many users. Additionally, Cisco Secure Desktop (Host Scan and Vault functionality) is included. Premium licenses do not max out the unit they’re on of SSL VPN sessions as does the Essentials license. Instead, this is a per seat license that can be purchased in bulk quantities. These quantities are 10, 25, 50, 100, 250, 500, 750, 1000, 2500, 5000, 10000 with each platform being able to support only the maximum number of licenses which it supports total VPN connections (ex. 5510 supports up to 250). These tiers must be observed when adding additional licensing. For example, if an administrator needed 35 concurrent clientless connections a 50 connection pack would need to be purchased. The 10 and 25 cannot be stacked. Cisco does offer upgrade licenses to upgrade tiers. Premium licenses are significantly more expensive than Essentials. Contact your reseller for pricing on Premium licenses.

If a VPN license is activated on an ASA, it will overwrite any existing VPN license. Be careful!

HA Pair License Dynamics

Prior to ASA software v8.3, licenses had to be identical on a HA pair. A 5510 with SSL VPN enabled wouldn’t pair with a 5510 lacking SSL VPN. As of v8.3, most licenses are replicated on a HA pair. On a 5505 or 5510 both ASAs require Security Plus licenses since Security Plus enables the HA functionality. SSL Essentials and Premium are replicated between licenses.

In an active/active pair, license quantities (when applicable) are merged. For example, two 5510s are in an active/active pair with 100 SSL Premium seats each. The licenses will merge to have a total of 200 SSL VPNs allowed in the pair. The combined number must be below the platform limitation. If the count exceeds the platform limit (ex. 250 SSL VPN connections on a 5510) the platform limit will be used on each.

Flex Licenses

ASA Flex licenses are temporary SSL VPN licenses for emergencies or situations where there is a temporary peak in SSL VPN connections. Each license is valid for 60 days. Perhaps these are best explained as a scenario.

XYZ Corp. had some flooding in their corporate office which houses 600 employees. They own an ASA 5520 with 50 SSL Premium licenses. Cisco’s Flex licenses will allow them to temporarily ‘burst’ the number of licenses their 5520 is enabled for. The key for 750 users is added to the 5520, starting the 60 day timer. The 5520 is now licensed to support up to 750 SSL VPN users on client based or clientless VPN. After 60 days the key will expire.

If XYZ Corp. has their building up and running again earlier than 60 days, the administrator can disable the temporary license by reactivating the permanent license they were previously using. This will pause the timer on the Flex licenses, allowing them to use the remainder of the time in the future.

Nitro pdf serial key. Cisco’s Flex license documentation is pretty good and explains some of the gotchas around the licenses. Be sure to read it before purchasing and using the license.

AnyConnect Premium Shared Licenses

Cisco Asa Show License Usage

Large deployments of SSL VPN may require multiple ASAs positioned in multiple geographic areas. Shared licenses allow a single purchase of SSL VPN licenses to be used on multiple ASAs, possibly over large physical areas. Starting with software v8.2, Cisco allows the shared license to ease this situation. Shared licenses are broken into two types: main and participant. The main license starts at 500 SSL Premium sessions and scales to 100,000 sessions. The main license acts as a license pool which participants pull from in 50 session increments. A secondary ASA can act as a backup in case the primary fails. There is no specific backup license, as the ASA only requires a participant license. If there is no secondary ASA, the participant ASAs may not be able to reach the main ASA in the event of a connectivity problem. The participant ASA is able to use the sessions that were last borrowed from the main for 24 hours. Beyond 24 hours, the sessions are released. Currently connected clients are not disconnected but new connections are not allowed.

In Active/Standby mode, the server ASA is actually the ASA pair. The backup ASA would be the backup pair. The standby server in a pair wouldn’t be the shared license backup. The manual explains this concept pretty well:

“For example, you have a network with 2 failover pairs. Pair #1 includes the main licensing server. Pair #2 includes the backup server. When the primary unit from Pair #1 goes down, the standby unit immediately becomes the new main licensing server. The backup server from Pair #2 never gets used. Only if both units in Pair #1 go down does the backup server in Pair #2 come into use as the shared licensing server. If Pair #1 remains down, and the primary unit in Pair #2 goes down, then the standby unit in Pair #2 comes into use as the shared licensing server.” – http://www.cisco.com/en/US/docs/security/asa/asa84/license/license_management/license.html#wp1487930

Advanced Endpoint Assessment

Advanced Endpoint Assessment will scan a SSL VPN client using Cisco Secure Desktop for security policy compliance and attempt to remediate if the system is out of compliance. This is similar but a little less feature-rich than NAC. Licenses are simple for Advanced Endpoint Assessment. One license per ASA is required in addition to SSL Premium. If the ASA is in a HA pair, one license per pair is required if using ASA software v. 8.3(1) or later.

I had the same terrible screeching problem with my 574 and all i did to fix it was remove the cover over the brushes as well as the dust guard and there was a wool pad over the rear motor bushing, i added a liberal ammount of electric motor oil to it and soaked the wool, spun it up a few times to get the oil worked in, and then reassembled. Once the base plate is freed, the blade guard is also freed. https://golmaker.netlify.app/skilsaw-574-manual.html. Be careful to not crush (1) the motor brushes at the back of the motor, and (2) the wires that come very close to the retaining bolts.Take the motor drive shaft, and replace the washers at each end.Insert the motor drive shaft, being careful not to lose the washer, nor crush the tape-wrapped motor brushes.Go back to step 4, and you can see that I screwed up the order of the washers on the geared end - the metal washer should be on the bottom! Insert the motor coils back in the motor cavity, and adjust the tape-wrapped motor brushes until the motor coil assembly sits comfortably in the cavity.Using the two bolts, bolt in the motor coils. The base plate contains a stop that keeps the blade guard from rotating completely.

Security Contexts

Security Contexts are virtual firewalls. Each context allows for its own set of rules and default policies. Security Contexts are sold in quantities of 5, 10, 20, 50, 100 and cannot be stacked. Cisco sells incremental licensing to move between tiers. Note that two security contexts are used when in a HA pair.

Unified Communications Proxy Licenses

Cisco Asa 5506 Show License

Cisco UC Proxy allows for Cisco IP phones to create a TLS tunnel between a remote phone and the ASA located at a corporate office. Typically if a secure connection between a phone and office were required, a firewall would have to sit at the user’s location. In many cases this would be a 800 series router. This deployment architecture doesn’t scale well due to management costs and cost of routers with their corresponding SMARTnet. UC Proxy bypasses the router and uses the IP phone as the VPN endpoint.

UC Proxy licenses are sold in numerous tiers ranging from 24 to 10,000 concurrent connections. The licenses cannot be stacked, but incremental licenses can be purchased.

Cisco Asa Show Anyconnect License Usage

AnyConnect Mobile Licenses

Out of the box, ASAs do not accept connections from mobile devices such as iOS or Android systems. The AnyConnect Mobile client must be installed on the client’s device. In addition to the client, the ASA must have AnyConnect Essentials or Premium enabled and a Mobile license used in conjunction. Only one Mobile license is required per ASA. The Mobile license inherits the number of SSL users allowed by Essentials or Premium.

Intercompany Media Engine

Cisco Asa Show License Udi

IME is a UC feature which allows for interoperability between organizations using Communications Manager. Licensing is simple, as a single IME license is required on the ASA.
